FSATECH PS324V20A18F

FSATECH PS324V20A18F

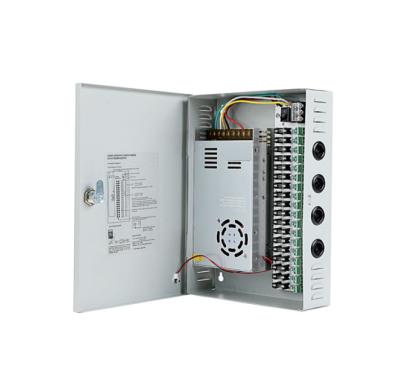

18CH 24V20A Power supply 480W, Fan

Features
Parameters
Model PS324V20A18F(FAN)
Output DC Voltage 24V
Rated Current 20A
Current range 0~20A
power rating 480W
Maximum ripple noise 120-140mvP-P
Voltage adjustment range /
Voltage accuracy ±5 (%)
line regulation ±3 (%)
load regulation ±5 (%)
Input Voltage range AC100~140V/180~240V
frequency range 47-63HZ
efficiency 82%(VIN=230V AC)
AC current 5.6-2.8A (110V-240V)
protect Overload 110%-150% of rated output power Abnormal conditions can be automatically restored after removal
short circuit After the short circuit state is lifted, it can be restored by rebooting
environment Operating temperature -10°C~+70°C
Operating humidity 20〜90%RH,non-condensing
Storage temperature -20~+85°C
Storage humidity 10~95%RH
Vibration resistant 10〜500Hz, 2G 10 min/cycle, 60 min each for X, Y, and Z
