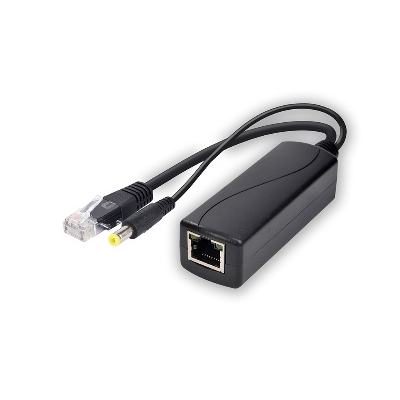

FSATECH POE112101

10/100Mbps DC interface, isolated (double panel, high quality transformer)

DC/OUT:12V/1A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

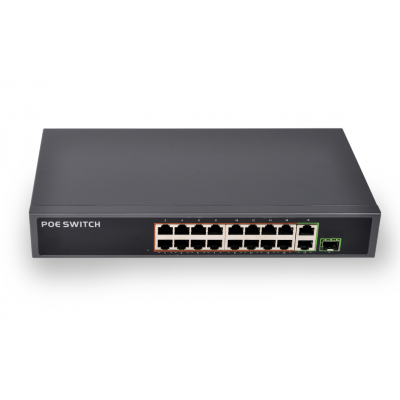

FSATECH POE-16102 16CH POE switch, with SFP
10/100Mbps, 150W

18-port switch, 16-port POE 16-port 100 Mbps

(can be connected to 800W smoothly without stuttering)

The two Gigabit upper networking ports 1SFP fiber ports are not combo interfaces

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

Extend mode: 1-16 ports automatically transmit distance of 250 meters

Total power: 150W

Size: 295*165*44mm

FSATECH POE112201

10/100Mbps DC interface, isolated (double-panel, economical transformer)

DC/OUT:12V/1A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

support 4.5 inch PTZ camera

Size: 81*28*24mm

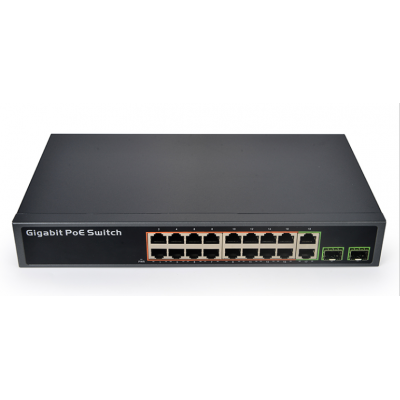

FSATECH POE-16201

16CH POE switch, with 2 SFP 10/100/1000Mbps,250W

16 ports full gigabit + 2 gigabit upper networking ports, 2 SFP gigabit fiber ports

(can be connected to 800W smoothly without lag)

Backplane bandwidth: 52 Gbps

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

POE signal and electrical transmission distance 100 meters

Total power: 250W

Size: 295*165*44mm

FSATECH POE112101B

10/100Mbps DC interface, isolated (double-panel, economical transformer)

DC/OUT:12V/1A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

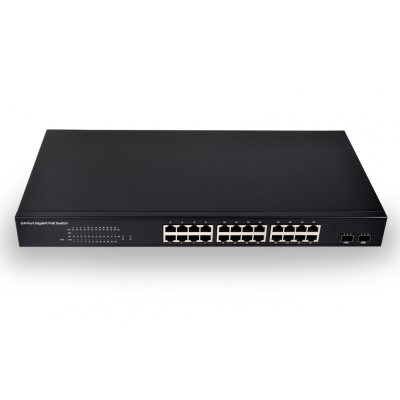

FSATECH POE-24201 24CH POE switch, with 2 SFP 10/100/1000Mbps, 370W

24 ports full gigabit + 2 SFP gigabit fiber ports A total of 26 ports

(can be connected to 800W smoothly without lag)

2 Gigabit SFP fiber ports

Backplane bandwidth: 52 Gbps

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

POE signal and electrical transmission distance 100 meters

Total power: 370W

Size: 440*220*44mm

FSATECH POE112101C

10/100Mbps DC interface, isolated (single panel)

DC/OUT:12V/1A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

FSATECH POE112201A

10/100Mbps DC interface, isolated type

DC/OUT:12V/2A(24W)

IEEE802.3at/af standard

PoE input voltage: 44-57V (30W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

support 6 inch PTZ camera

Size: 81*28*24mm

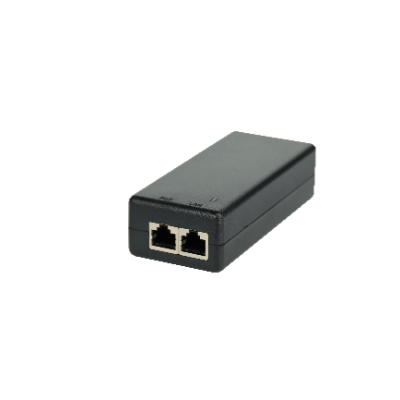

FSATECH POE-01102

PoE Injector, 10/100Mbps, passive POE 48V, 24W

1. Voltage output: DC48V no-load error ± 3%

2.Current output: 500mA

3.AC  input: 170 ~ 230V 50 ~ 60HZ China GB two-plug, line length L = 900mm

4. RJ45 network block: 8P8C network block * 2 a Poe port a LAN port

5. Size: 85 * 45 * 30MM

6. Power Pin: (4/5 +)(7/8 -) power 1/2/3/6 data

7. Speed: 10/100 Megabytes

8. Color: white

9. Operating Temperature: -10 ~ 60 ° C

10. Effective transmission distance: CAT5E/CCA70M/BC110M Cat6/CCA80M/BC120M CAT6e/CCA90M/BC140M (for the stability of data transmission recommendations within 100M use) with LAN connection line!

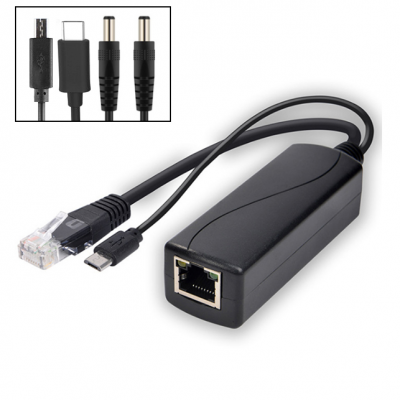

FSATECH POE20530X

Gigabit DC5.5*2.1/Type-C/Micro USB/DC5.5*2.5 and other interfaces, isolated type

DC/OUT:5V/3A(15W)

IEEE802.3af/at standard

PoE input voltage: 44-57V

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

FSATECH POE-02102 POE Injector,10/100Mbps  POE 48V,500mA

Non-standard POE power supply

DC48V 0.5A 24W POE Power Plug Injector Distributor for CCTV IP Camera Ethernet Switch Adapter, US Plug

Passive POE 48V

Meets IEEE 802.3af standard

PoE :4,5+/7,8-

Port power: 24WattsMaximum

Input Power AC Input Voltage: 100~240VAC

POE data and electrical transmission distance 100 meters

Weight: 85g

Size: 83*48*53.5mm

10/100 megab

FSATECH POE20524X

Gigabit DC5.5*2.1/Type-C/Micro USB/DC5.5*2.5 and other interfaces, isolated type

DC/OUT:5V/2.4A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm
