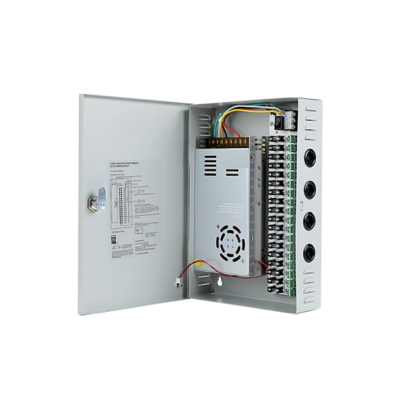

FSATECH PS324V15A18F

18CH 24V15A Power supply 360W, Fan

Features Parameters Download

Features

Parameters

Model		PS324V15A18F（FAN）
Output	DC Voltage	24V
	Rated Current	15A
	Current range	0~15A
	power rating	360W
	Maximum ripple noise	120-140mVp-p
	Voltage adjustment range	/
	Voltage accuracy	±5 (%)
	line regulation	±3 (%)
	load regulation	±5 (%)
Input	Voltage range	AC100~140V/180~240V
	frequency range	47-63HZ
	efficiency	82%(VIN=230V AC)
	AC current	5.6-2.8A (110V-240V)
protect	Overload	110%-150% of rated output power Abnormal conditions can be automatically restored after removal
protect	short circuit	After the short circuit state is lifted, it can be restored by rebooting
environment	Operating temperature	-10°C~+70°C
	Operating humidity	20〜90%RH,non-condensing
	Storage temperature	-20~+85°C
	Storage humidity	10~95%RH
	Vibration resistant	10〜500Hz, 2G 10 min/cycle, 60 min each for X, Y, and Z
