FSATECH PS312V5A9P

FSATECH PS312V5A9P

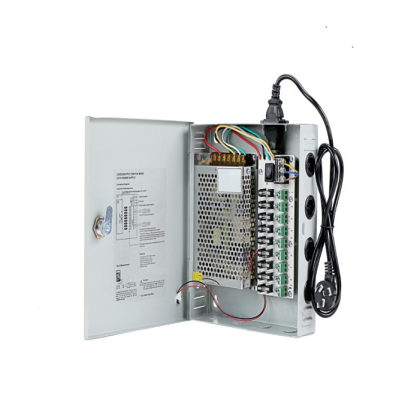

9CH 12V5A Power supply 60W, AC Power Cable

Features
Parameters
Model PS324V5A9P(AC power cord)
Output DC Voltage 24V
Rated Current 5A
Current range 0~5A
power rating 120W
Maximum ripple noise 100-130mVp-p
Voltage adjustment range /
Voltage accuracy ±5 (%)
line regulation ±3 (%)
load regulation ±5 (%)
Input Voltage range AC100~120V/175~245V
frequency range 47-63HZ
efficiency 83%(VIN=220V AC)
AC current 1.4-1.15A (185V-240V)
protect Overload 110%-150% of rated output power Abnormal conditions can be automatically restored after removal
short circuit After the short circuit state is lifted, it can be restored by rebooting
environment Operating temperature -10°C~+70°C
Operating humidity 20〜90%RH,non-condensing
Storage temperature -20~+85°C
Storage humidity 10~95%RH
Vibration resistant 10〜500Hz, 2G 10 min/cycle, 60 min each for X, Y, and Z
