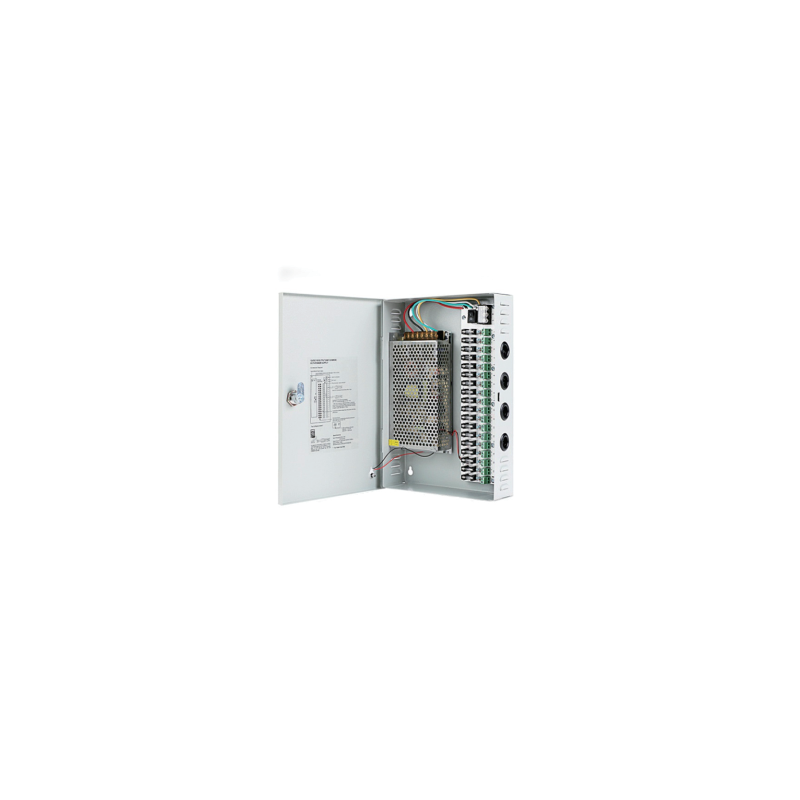

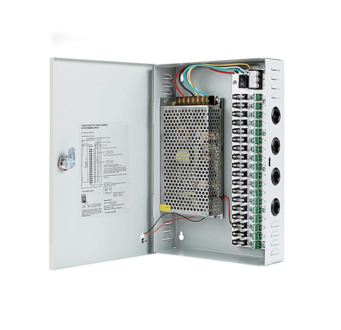

| Model |
PS312V10A18 PS312V10A18P（AC power cord） |
|
| Output | DC Voltage | 12V |
| Rated Current | 10A | |
| Current range | 0~10A | |
| power rating | 120W | |
| Maximum ripple noise | 100-130mVp-p | |
| Voltage adjustment range | 9.75 -14.6V | |
| Voltage accuracy | ±5 (%) | |
| line regulation | ±3 (%) | |
| load regulation | ±5 (%) | |
| Input | Voltage range | AC100~120V/175~245V |
| frequency range | 47-63HZ | |
| efficiency | 83%(VIN=220V AC) | |
| AC current | 1.4-1.15A (185V-240V) | |
| protect | Overload | 110%-150% of rated output power Abnormal conditions can be automatically restored after removal |
| short circuit | After the short circuit state is lifted, it can be restored by rebooting | |
| environment | Operating temperature | -10°C~+70°C |
| Operating humidity | 20〜90%RH,non-condensing | |
| Storage temperature | -20~+85°C | |
| Storage humidity | 10~95%RH | |
| Vibration resistant | 10〜500Hz, 2G 10 min/cycle, 60 min each for X, Y, and Z | |
