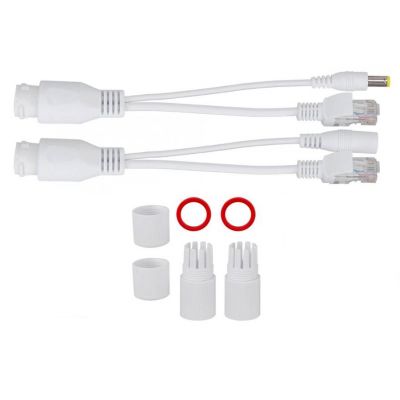

FSATECH POE502-W

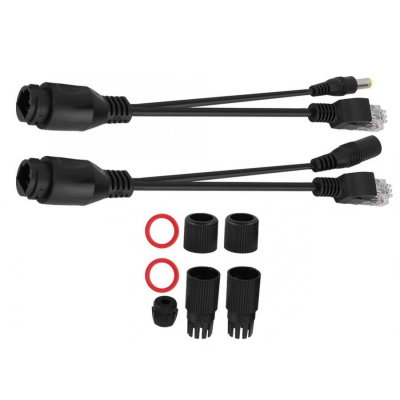

FSATECH POE502-B

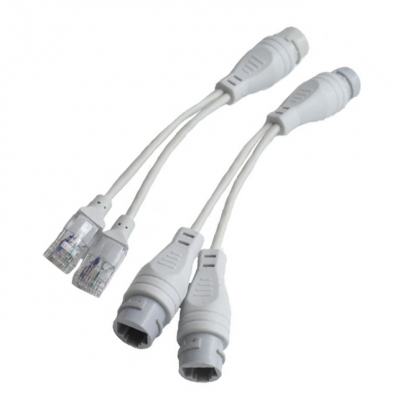

FSATECH POE503

POE Splitter, waterproof

One point two network line divider waterproof, with 4 sets of x waterproof plug 4-piece set

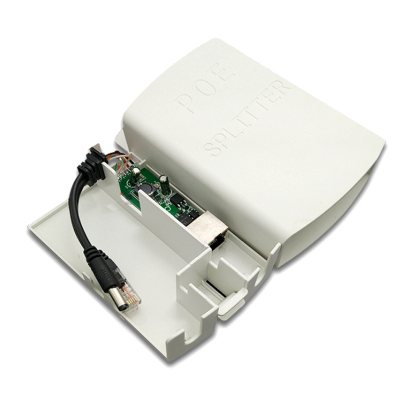

FSATECH POE601

Waterproof POE splitter

Monitoring waterproof box POE separator Waterproof box outdoor network monitoring power supply 48V to 12V2A

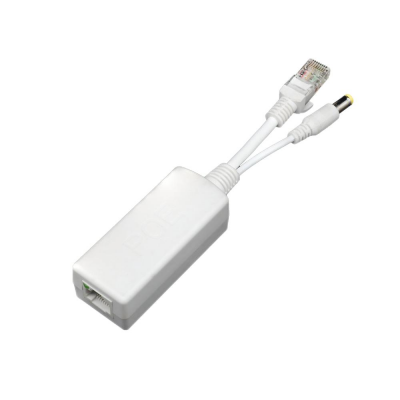

FSATECH POE712201C

POE Splitter 10/100M (Imported chips)

1. Power input: DC48V ~ 55V

2. Power Output: 12V2A

3. DC male : 5.5 * 2.1 mm line length L = 120 mm

4. RJ45 network block: 8P8C

5. Network Crystal Head: 8P8C line length L = 120mm

6. Power pin: compatible with 1,2 +/3,6-or 4,5 +/7,8-

7. Data pin: 1/2/3/6

8. Speed: 10/100 trillion

9. Color: White

10. Operating Temperature: -10 ~ 60 ° C

11. Size: 70 * 30 * 24mm

12. Effective transfer distance: CAT5E/CCA70M/BC110M Cat6/CCA80M/BC120M CAT6e/CCA90M/BC140M (recommended for data transfer stability within 100M)

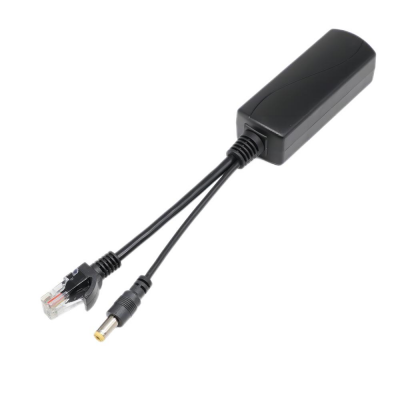

FSATECH POE712201D

POE Splitter 10/100M (domestic chip)

1. Power input: DC48V ~ 55V

2. Power Output: 12V2A

3. DC male: 5.5 * 2.1 mm line length L = 120 mm

4. RJ45 network block: 8P8C

5. Network Crystal Head: 8P8C line length L = 120mm

6. Power pin: compatible with 1,2 +/3,6-or 4,5 +/7,8-

7. Data Fpin: 1/2/3/6

8. Speed: 10/100 trillion

9. Color: Black

10. Operating Temperature: -10 ~ 60 ° C

11. Size: 70 * 30 * 24mm

12. Effective transfer distance: CAT5E/CCA70M/BC110M Cat6/CCA80M/BC120M CAT6e/CCA90M/BC140M (recommended for data transfer stability within 100M)

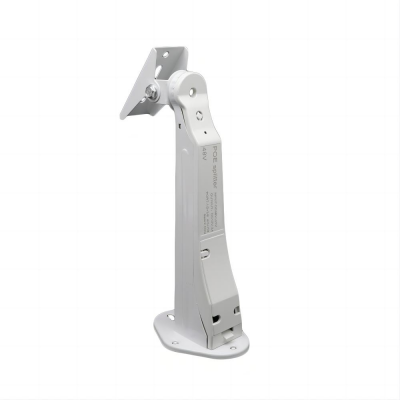

FSATECH POE602

POE Splitter 10/100M bracket style

1. Power input: DC48V ~ 55V

2. Power Output: 12V2A

3.DC male : 5.5 * 2.1 mm

4. RJ45 network block: 8P8C

5. Network Crystal Head: 8P8C

6. Power pin: compatible with 1,2 +/3,6-or 4,5 +/7,8-

7. Data pin: 1/2/3/6

8. Speed: 10/100 trillion

9. Color: white

10. Operating Temperature: -10 ~ 60 ° C

11. Support Size: 250 * fixed seat 100 * 75 mm

12. Effective transfer distance: CAT5E/CCA70M/BC110M Cat6/CCA80M/BC120M CAT6e/CCA90M/BC140M (recommended for data transfer stability within 100M)

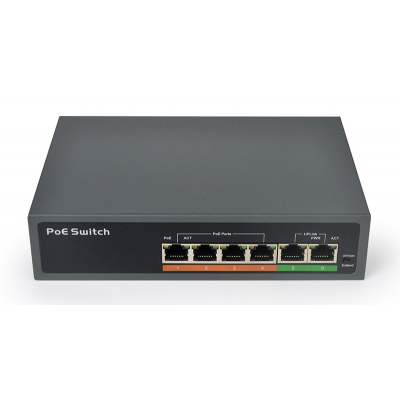

FSATECH POE-04101

4CH POE switch10/100Mbps, 65W

6-port switch, 4-port POE per port 100 mbps

Backplane bandwidth: 1.6 Gbps

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

Normal mode: 100Mbps, transmission 100m

Extended mode: 1-4 ports 10Mbps, transmission 250 meters

Total power: 65W

Size: 185*124*44mm

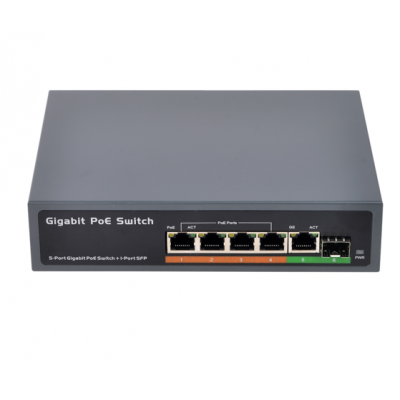

FSATECH POE-04201

4CH POE switch, with SFP10/100/1000Mbps, 65W

6-port switch, 4-port POE + 1-port cascade + 1-port SFP are all gigabit

(can support full 800W smoothly without lag)

Backplane bandwidth: 12 Gbps

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

POE data and electrical transmission distance 100 meters

Total power: 65W

Size: 185*124*44mm

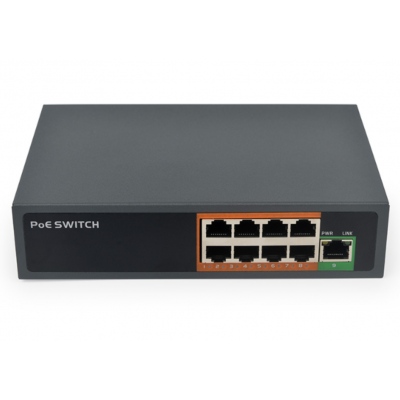

FSATECH POE-08101

8CH POE switch 10/100Mbps,104w

9-port switch, 8-port POE 8-port 100 mbps

Backplane bandwidth: 2 Gbps

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

POE data and power transmission distance 100 meters

Single port power 15.4W(af);30W(at)

Total power: 104W

Lightning protection: common mode differential mode 4KV 10/700us

Extend mode: 1-8 ports transmission distance 250 meters automatically open, no need to DIP switch

Size: 185*124*44mm

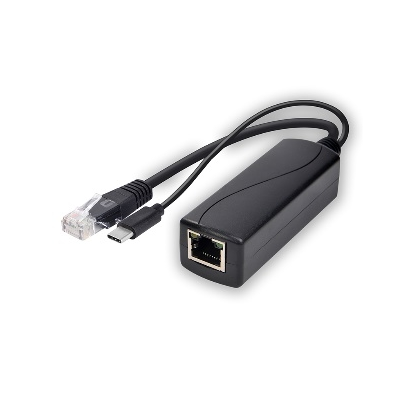

FSATECH POE105302

10/100Mbps, TYPE-C, isolated

DC/OUT:5V/3A(15W)

IEEE802.3af/at standard

PoE input voltage: 44-57V

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

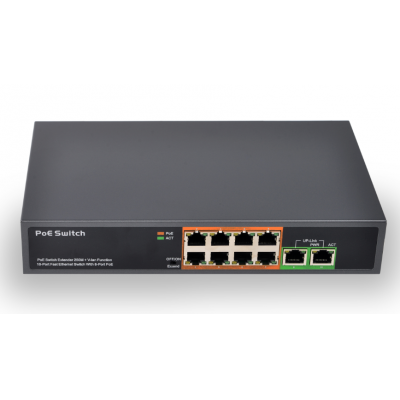

FSATECH POE-08102

8CH POE switch 10/100Mbps,150W

10-port switch, 8-port POE 8-port 100 Gigabit

Backplane bandwidth: 2 Gbps

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

POE data and electrical transmission distance 100 meters

Single port power 15.4W(af);30W(at)

Total power: 150W

Extend mode: 1-4 ports transmission distance 250 meters, with DIP switch

Size: 250*150*44mm
