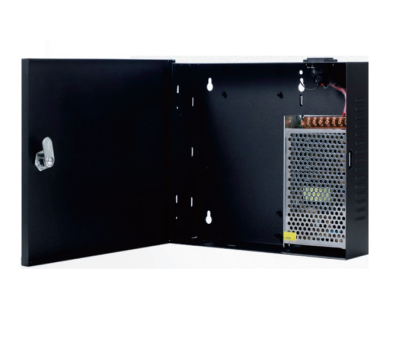

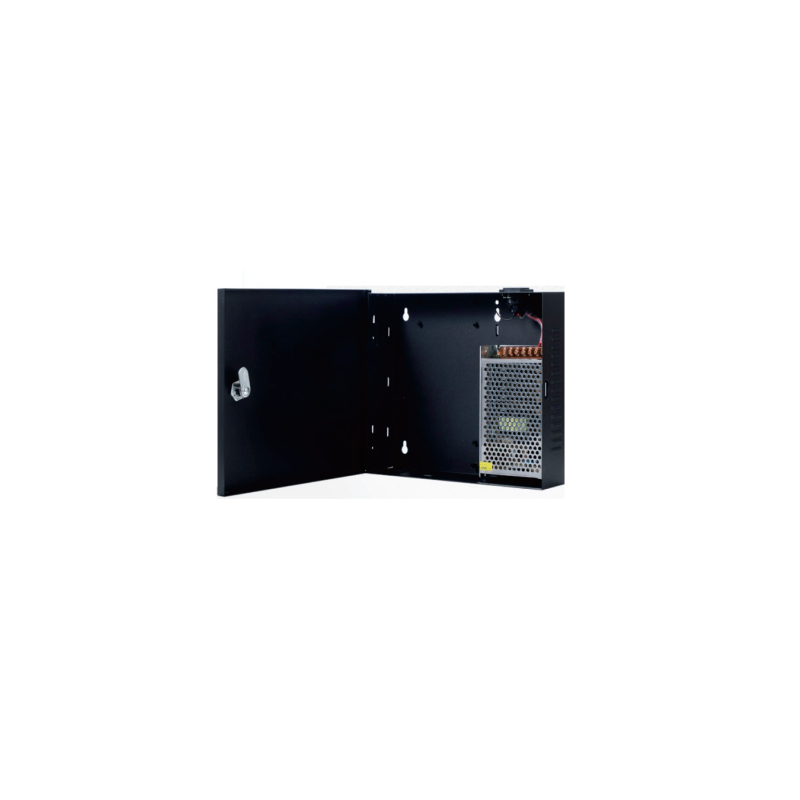

| model | PS612V10A |
| name | Access control power supply（Switching power supply) |
| appilcation | It is suitable for multiple protection functions of access control system security equipment, intelligent circuit design, good stability and heat dissipation can be used together - multi-door controller, single door, double door and four door access controller can be installed in the internal space,10A power supply output power, can meet 2-4 card readers 6 Magnetic locks work at the same time with stable operation (note the length of wiring and frontal current consumption caused by other devices) |
| AC input | AC90 - 250V 50/60Hz |
| DC output | 12V 10A 120W |
| power rating | DC10.2 - 13.6V |
| Species of protection | Overload/overvoltage/short circuit protection |
| short-circuit protection | After the short circuit is removed, restart the machine to recover |
| temperature | -10°C~+70°C |
| The above products do not include batteries, batteries need to be purchased separately |
