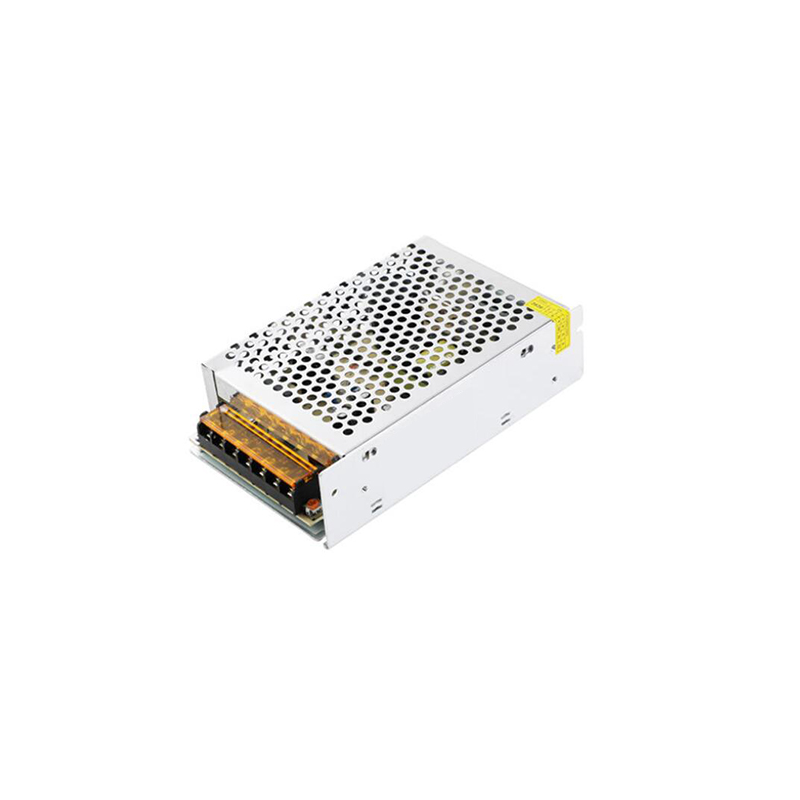

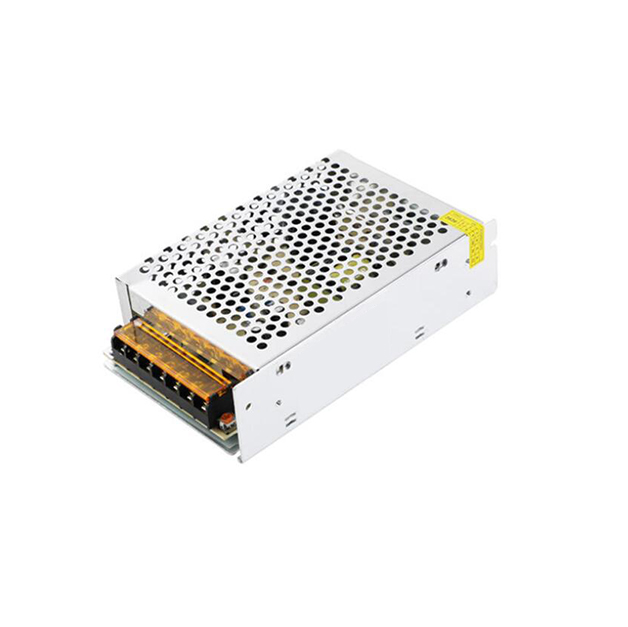

FSATECH PS512V5A

12V 5A Power supply 60W

Remark:
1. Unless otherwise specified, all specifications are measured under the input of 220VAC and rated load.
2. Accuracy: including setting error, linear regulation and load regulation.
3. Linear regulation measurement method: under rated load, from low voltage to high voltage test.
4. Load regulation measurement method: from 0% to 100% rated load.
5. The start-up time is measured in the cold start state, and rapid and frequent power on and off may increase the start-up time.

Features Parameters Download

Features

Input voltage :110-220Vac
Ac input range is wide voltage
Protection type: short circuit / over voltage / over temperature protection
Working environment: -10°C-+70°C
New components and fiberglass sheet lines are adopted
The power start LED is lit
100% full load aging test
Short circuit: After the short circuit is removed, it can be recovered by restarting the machine
Can be used at an altitude of 2000 meters, can be used in non-tropical climate
Suitable for LED road lighting, industrial lighting, industrial automation machinery, industrial control systems, electronic instruments, electronic equipment and devices

Parameters

Model		PS512V5A
Output	DC Voltage	12V
	Rated Current	5A
	Current range	0〜5A
	power rating	60W
	Ripple and noise	380-420mVp-p
	Voltage adjustment range	10.5-13.7V
	Voltage accuracy	±5 (%)
	line regulation	±0.5 (%)
	load regulation	±3 (%)
Input	Voltage range	100~120VAC/175〜245VAC （Wide voltage below 60W; Above 120W is selected by switch）
	frequency range	47-63HZ
	efficiency	85 (%)
	AC current	2.0A-3.5A (100-240VAC)
protect	Overload	110%-150% of rated output power Abnormal conditions can be automatically restored after removal
protect	short circuit	After the short circuit state is lifted, it can be restored by rebooting
environment	Operating temperature	-10°C~+70°C
	Operating humidity	20〜90%RH,non-condensing
	Storage temperature	-20 〜+85°C
	Storage humidity	10 〜95%RH
	Vibration resistant	10〜500Hz, 2G 10 min/cycle, 60 min each for X, Y, and Z
