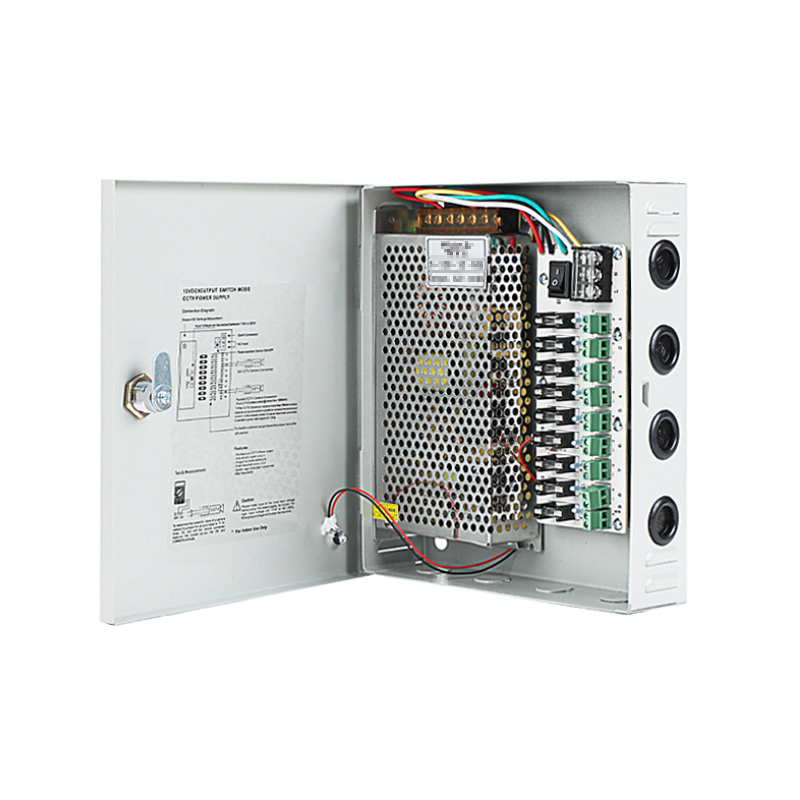

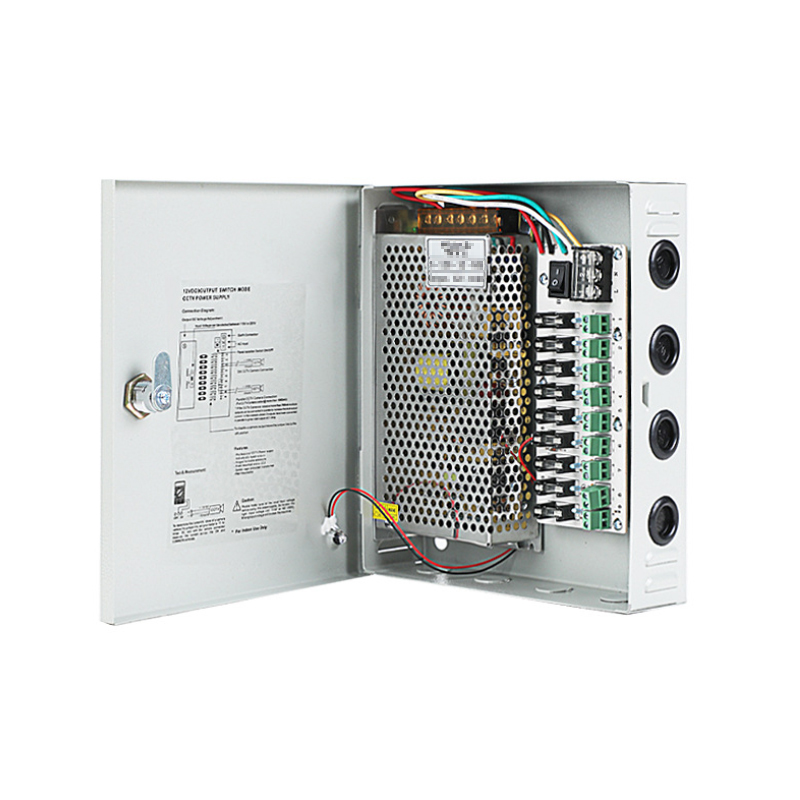

FSATECH PS312V10A9

9CH 12V 10A Power supply 120W, 24V 5A

Features Parameters Download

Features

Parameters

Model		PS312V10A9 PS312V10A9P（AC power cord）
Output	DC Voltage	12V
	Rated Current	10A
	Current range	0~10A
	power rating	120W
	Maximum ripple noise	100-130mVp-p
	Voltage adjustment range	9.75 -14.6V
	Voltage accuracy	±5 (%)
	line regulation	±3 (%)
	load regulation	±5 (%)
Input	Voltage range	AC100~120V/175~245V
	frequency range	47-63HZ
	efficiency	83%(VIN=220V AC)
	AC current	1.4-1.15A (185V-240V)
protect	Overload	110%-150% of rated output power Abnormal conditions can be automatically restored after removal
protect	short circuit	After the short circuit state is lifted, it can be restored by rebooting
environment	Operating temperature	-10°C~+70°C
	Operating humidity	20〜90%RH,non-condensing
	Storage temperature	-20~+85°C
	Storage humidity	10~95%RH
	Vibration resistant	10〜500Hz, 2G 10 min/cycle, 60 min each for X, Y, and Z
