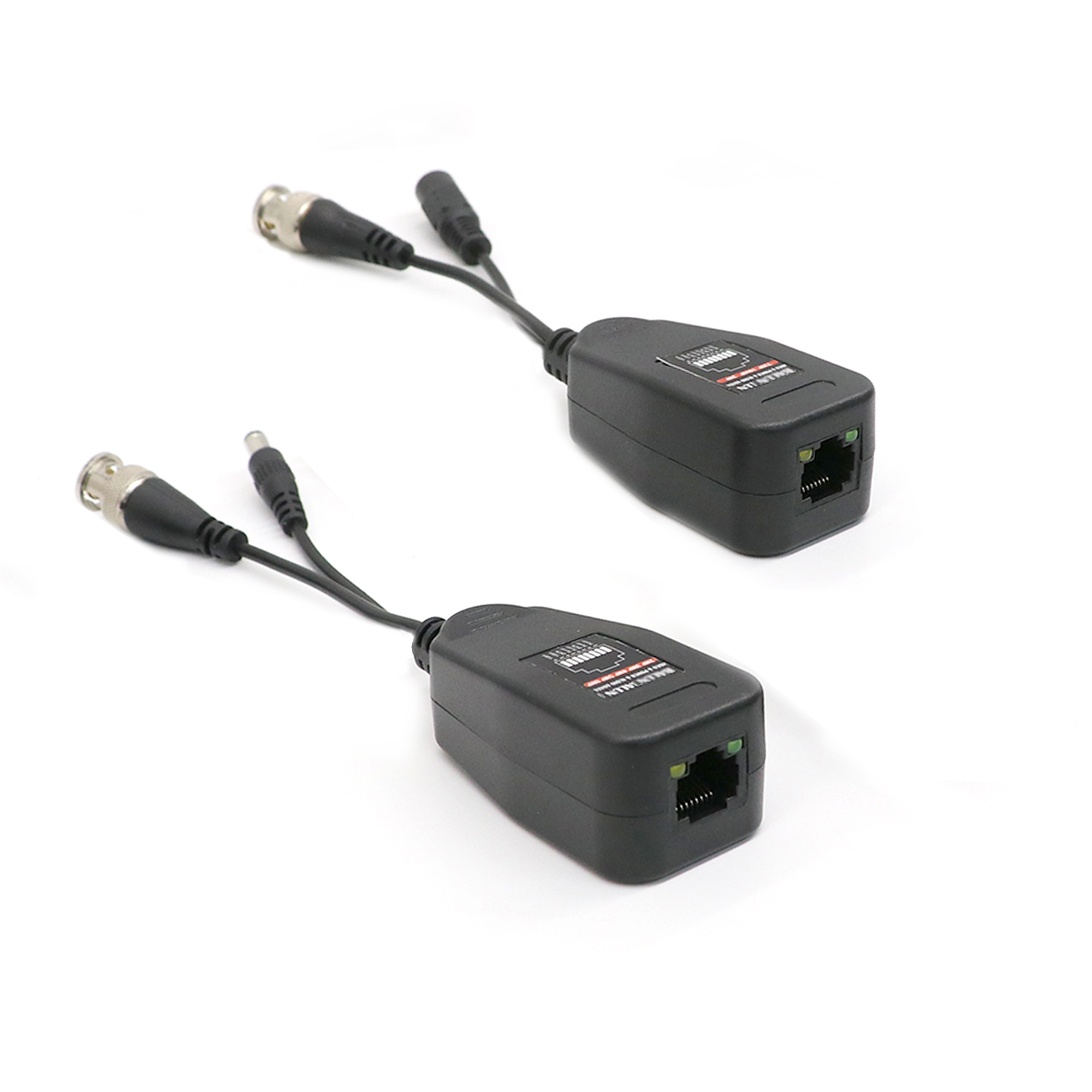

FSATECH LLT-VP201

2MP, 4 in 1 HD passive video balun with power

AHD/TVI/CVI/CVBS

Features Parameters Download

Features

This is video and power transmitter and receiver that allows the transmission of real time CCTV HD video and power via cost effective. Used in pairs, eliminates costly andbulky coaxail cable.
It is compatiable with all HDTVI, HDCVI, AHD and CVBS analog camera.
The superior interference rejection and low emissions of allow video signals to cexist in the same wire bundle as low voltage power circuits.

Parameters

Technical Specifications
Video	Transmission Distance	* CVBS≦400m * HDCVI 720P≦300m, HDCVI 1080P≦200m * HDTVI 720P≦250m, HDTVI 1080P≦150m * AHD 720P≦250m, AHD 1080P≦150m
	Compatible Format	CVI/TVI/AHD/CVBS
	Resolution	720P/920P/1080P
	ESD	1a contact discharge electricity level 3
		1b air discharge electricity level 3 Per: IEC61000-4-2

	Coaxial Cable Connector	2KV(common code) Per：IEC1000-4-5
	UTP Cable Connector	2KV(Different code) ,4KV (common code) Per：IEC1000-4-5

Power	Power transmission	Power Voltage Drop calculations:For 12V DC 1 Amp,cable distance should not exceed 90ft/27m. For longer distance,pls us 14V DC,16V DC,18V DC,20~48V DC...
Cable	Category Type	Category 5e/Category 6 only
	RJ45 Video Balun is not waterproof.For indoor use only. Make sure the RJ45 for camera side and DVR side are the same standard. Wrongfully mixing the colors may result in burning the camera and devices.
