POWER CONTROL CABLE

FSATECH P07
FSATECH P07

FSATECH P07

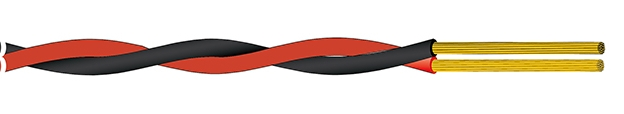

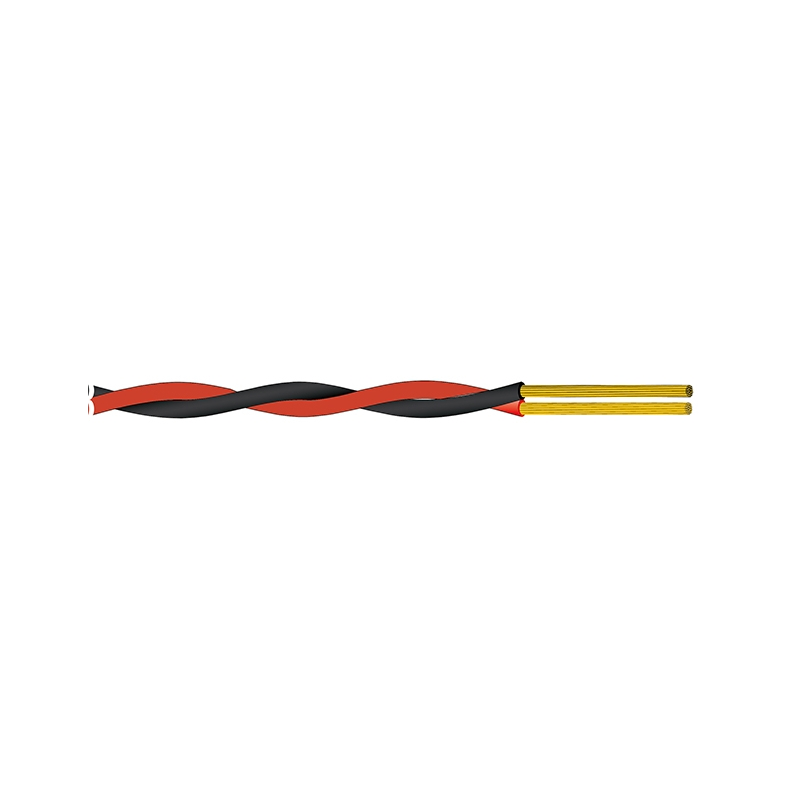

RVS cable 0.5~6.0mm²


This product is suitable for wiring connection of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below, and can also be used for short-distance voice, data and fire alarm signal transmission.
Product standard：JB/T/T 8734.4-2012




Contact us

Features Parameters Download
Features
1、The long-term use temperature of the cable is -15 degrees Celsius ~ 70 degrees Celsius
2、The cable laying temperature is not less than 0 degrees Celsius, and the special use temperature can be customized.

Parameters
Nominal cross-section.
mm² 		Single wire in conductor
Maximum diameter
mm 		Insulation thickness
Nominal value
mm 		Average outer diameter
Upper limit mm 		Maximum conductor resistance at 20 degrees CelsiusΩ/km Minimum insulation resistance at 70 degrees Celsius MΩ·km
Copper core Tinned copper core
2×0.5 0.16 0.8 6 39 40.1 0.016
2×0.75 0.16 0.8 6.2 26 26.7 0.014
2×1.0 0.2 0.8 6.6 19.5 20 0.01
2×1.5 0.25 0.8 7.2 13.3 13.7 0.009
2×2.5 0.25 0.8 8.4 7.98 8.21 0.009
