FSATECH SA110

Alarm cable 10C unshield solid or stranded conductor

￭Material: [Insulation] PVC, [Jacket] PVC ￭Outer Diameter: 5.1±0.2mm ￭[Max. Conductor DC Resistance] ≦  Ω/Km @ 20℃ [Core Spark Test Voltage] 300V AC [Min Insulation DC Resistance] ≥   MΩ/Km @ 20℃ [Rated Conductor Temperature]-20℃~70℃

FSATECH SA108

Alarm cable 8C unshield solid or stranded conductor

￭Material: [Insulation] PVC, [Jacket] PVC ￭Outer Diameter: 4.5±0.2mm ￭[Max. Conductor DC Resistance] ≦  Ω/Km @ 20℃ [Core Spark Test Voltage] 300V AC [Min Insulation DC Resistance] ≥   MΩ/Km @ 20℃ [Rated Conductor Temperature]-20℃~70℃

FSATECH SA106

Alarm cable 6C unshield solid or stranded conductor

￭Material: [Insulation] PVC, [Jacket] PVC ￭Outer Diameter: 4.1±0.2mm ￭[Max. Conductor DC Resistance] ≦  Ω/Km @ 20℃ [Core Spark Test Voltage] 300V AC [Min Insulation DC Resistance] ≥   MΩ/Km @ 20℃ [Rated Conductor Temperature]-20℃~70℃

FSATECH SA104

Alarm cable 4C unshield solid or stranded conductor

￭Material: [Insulation] PVC, [Jacket] PVC ￭Outer Diameter: 3.4±0.2mm ￭[Max. Conductor DC Resistance] ≦  Ω/Km @ 20℃ [Core Spark Test Voltage] 300V AC [Min Insulation DC Resistance] ≥   MΩ/Km @ 20℃ [Rated Conductor Temperature]-20℃~70℃

FSATECH SA102

Alarm cable 2C unshield solid or stranded conductor

￭Material: [Insulation] PVC, [Jacket] PVC ￭Outer Diameter: 3.1±0.2mm ￭[Max. Conductor DC Resistance] ≦  Ω/Km @ 20℃ [Core Spark Test Voltage] 300V AC [Min Insulation DC Resistance] ≥   MΩ/Km @ 20℃ [Rated Conductor Temperature]-20℃~70℃

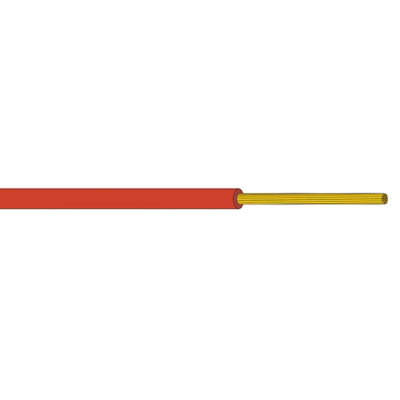

FSATECH P01

AVR cable 0.08~0.4mm²

This product is suitable for the internal installation and wiring of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below.

Product standard：JB/T/T 8734.4-2012

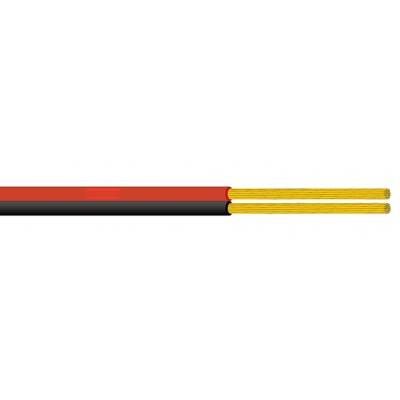

FSATECH P02

AVRB cable 0.12~0.4mm²

This product is suitable for the internal installation and wiring of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below.

Product standard：JB/T/T 8734.4-2012

FSATECH P03

AVRS cable 0.12~0.4mm²

This product is suitable for the internal installation and wiring of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below.
Product standard：JB/T/T 8734.4-2012

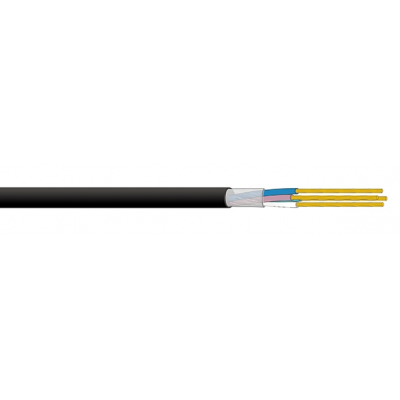

FSATECH P04

AVVR cable 2~30C, 0.08~0.4mm²

This product is suitable for the internal installation and wiring of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below.
Product standard：JB/T/T 8734.4-2012

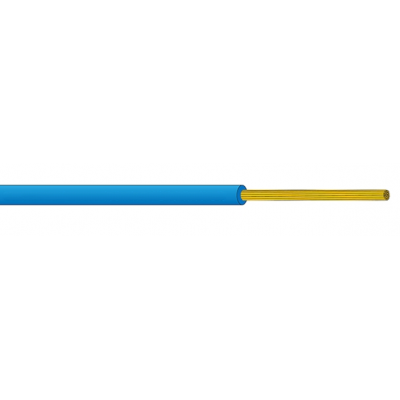

FSATECH P05

RV cable 0.5~2.5mm²

This product is suitable for wiring connection of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/500V and 450/750V and below.
Product standard：GB/T 5023.3-2008

FSATECH P06

RVB cable 0.5~6.0mm²

This product is suitable for the internal installation and wiring of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below.

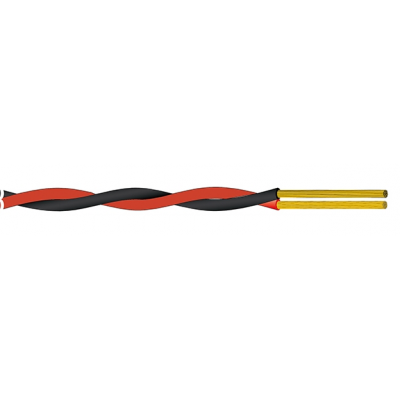

FSATECH P07

RVS cable 0.5~6.0mm²

This product is suitable for wiring connection of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below, and can also be used for short-distance voice, data and fire alarm signal transmission.
Product standard：JB/T/T 8734.4-2012
